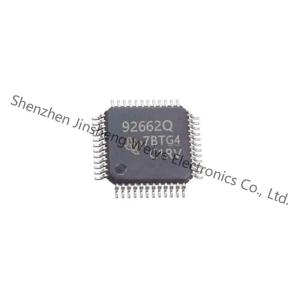

The Texas Instruments TPS92662QPHPRQ1 power management IC is an ideal solution for powering and controlling LEDs in small to medium sized designs. The device integrates an LED driver with a 12-output DC-DC regulator and PWM dimming. The integrated PWM dimming allows for precision control over each LED with up to 12 levels of dimming. The device also supports parallel and serial operation modes to meet various design requirements. Additionally, the device is designed to stay within an ultra-low voltage configuration, allowing for improved system reliability. The TPS92662QPHPRQ1 is available in a 48-HTQFP (7x7) package, providing a compact solution for incorporating into designs with limited board space.
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | LED Drivers |
| Mfr | Texas Instruments |
| Series | Automotive AEC-Q100 |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Product-Status | Active |
| Type | DC DC Regulator |
| Topology | - |
| Internal-Switch-s | Yes |
| Number-of-Outputs | 12 |
| Voltage-Supply-Min | 4．5V |
| Voltage-Supply-Max | 60V |
| Voltage-Output | 62V |
| Current-Output-Channel | - |
| Frequency | - |
| Dimming | PWM |
| Applications | Automotive |
| Operating-Temperature | -40°C ~ 125°C (TA) |
| Mounting-Type | Surface Mount |
| Package-Case | 48-PowerTQFP |
| Supplier-Device-Package | 48-HTQFP (7x7) |
| Base-Product-Number | TPS92662 |
