Product Details

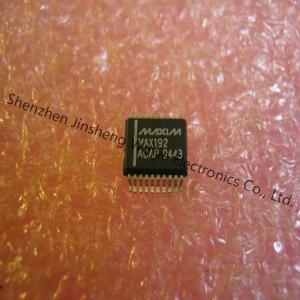

The MAX192 is a low-cost, 10-bit data-acquisition system that combines an 8-channel multiplexer, high-bandwidth track/hold, and serial interface with high conversion speed and ultra-low power consumption. The device operates with a single +5V supply. The analog inputs are software configurable for single-ended and differential (unipolar/bipolar) operation.
♦ 8-Channel Single-Ended or 4-Channel Differential Inputs
♦ Single +5V Operation
♦ Low Power: 1.5mA (operating)
2µA (power-down)
♦ Internal Track/Hold, 133kHz Sampling Rate
♦ Internal 4.096V Reference
♦ 4-Wire Serial Interface is Compatible with SPI, QSPI, Microwire, and TMS320
♦ 20-Pin DIP, SO, SSOP Packages
♦ Pin-Compatible 12-Bit Upgrade (MAX186/MAX188)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | IC Chips |
| Series | MAX192A |
| Product | Analog to Digital Converters |
| Type | Data Acquisition System (DAS), ADC |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.016000 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 20-SSOP (0.209", 5.30mm Width) |
| Input-Type | Differential/Single-Ended |
| Operating-Temperature | 0°C ~ 70°C |
| Mounting-Type | Surface Mount |
| Number-of-Channels | 8 Channel |
| Voltage-Supply | ±5V |
| Supplier-Device-Package | 20-SSOP |
| Resolution-Bits | 10 b |
| Sampling-Rate-Per-Second | 133k |
| Data-Interface | MICROWIRE?, QSPI?, Serial, SPI? |
| Voltage-Supply-Source | Single Supply |
| Architecture | SAR |
| Resolution | 10 bit |
| Reference-Type | External Internal |
| Pd-Power-Dissipation | 640 mW |
| Maximum Operating Temperature | + 70 C |
| Operating temperature range | 0 C |
| Interface-Type | Serial 4-Wire SPI TMS320 |
| Part-#-Aliases | MAX192A |
| Package-Case | SSOP-20 |
| Number-of-Converters | 1 Converter |
| Sampling-Rate | 133 kS/s |
| INL-Integral-Nonlinearity | +/- 0.5 LSB |
| Reference-Voltage | 4.096 V |
| DNL-Differential-Nonlinearity | +/- 1 LSB |
