STM6823RWY6F DatasheetThe STM6xxx Supervisors are self-contained devices which provide microprocessor supervisory functions. A precision voltage reference and comparator monitors the VCC input for an out-of-tolerance condition. When an invalid VCC condition occurs, the reset output (RST) is forced low (or high in the case of RST). These devices also offer a watchdog timer (except for STM6322/6825) and/ or a push-button (MR) reset input.

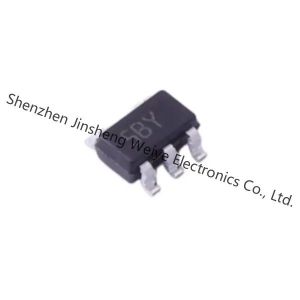

These devices are available in a standard 5-pin SOT23 package.
■ PRECISION VCC MONITORING OF 5V, 3.3V, 3V, OR 2.5V POWER SUPPLIES
– STM6xxxL
– STM6xxxM
– STM6xxxT
– STM6xxxS
– STM6xxxR
– STM6xxxZ
■ RST OUTPUTS (ACTIVE-LOW, PUSH-PULL OR OPEN DRAIN)
■ RST OUTPUTS (ACTIVE-HIGH, PUSHPULL)
■ 200ms (TYP) trec
■ WATCHDOG TIMER - 1.6sec (TYP)
■ MANUAL RESET INPUT (MR)
■ LOW SUPPLY CURRENT - 3µA (TYP)
■ GUARANTEED RST (RST) ASSERTION DOWN TO VCC = 1.0V
■ OPERATING TEMPERATURE: –40°C to 85°C (Industrial Grade)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Supervisors |
| Series | STM6823 |
| Type | Simple Reset/Power-On Reset |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.001058 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | SC-74A, SOT-753 |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Active Low Push-Pull |
| Supplier-Device-Package | SOT-23-5 |
| Output | Push-Pull, Totem Pole |
| Reset | Active Low |
| Voltage monitoring relays | 1 |
| Reset-Timeout | 140 ms Minimum |
| Voltage-Threshold | 2.63V |
| Pd-Power-Dissipation | 320 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 12 uA |
| Battery-Backup-Switching | No Backup |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 1 V |
| Package-Case | SOT-23-5 |
| Watchdog-Timers | Watchdog |
| Threshold-Voltage | 2.5 V 3 V 3.3 V 5 V |
| Input Monitoring | 1 Input |
| Manual-Reset | Manual Reset |
| Chip-Enable-Signals | No Chip Enable |
| Power-Fail-Detection | No |
| Reset-Delay-Time | 280 ms |
| Overvoltage-Threshold | 2.66 V |
| Undervoltage-Threshold | 2.59 V |
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| STM6823RWY6E Power Circuits | 1-CHANNEL POWER SUPPLY MANAGEMENT CKT, PDSO5, ROHS COMPLIANT, SOT-23, 5 PIN | STMicroelectronics | STM6823RWY6F vs STM6823RWY6E |
